Small Log Cutting Machine
Key words:
multi rip saw machine
sawmill
multi rip saw
Category:
WhatsApp:

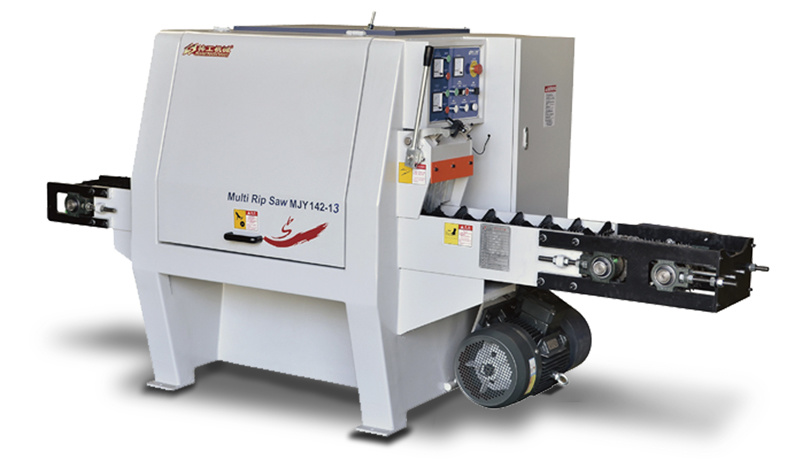

Small Log Cutting Machine
Its main features and performance are:

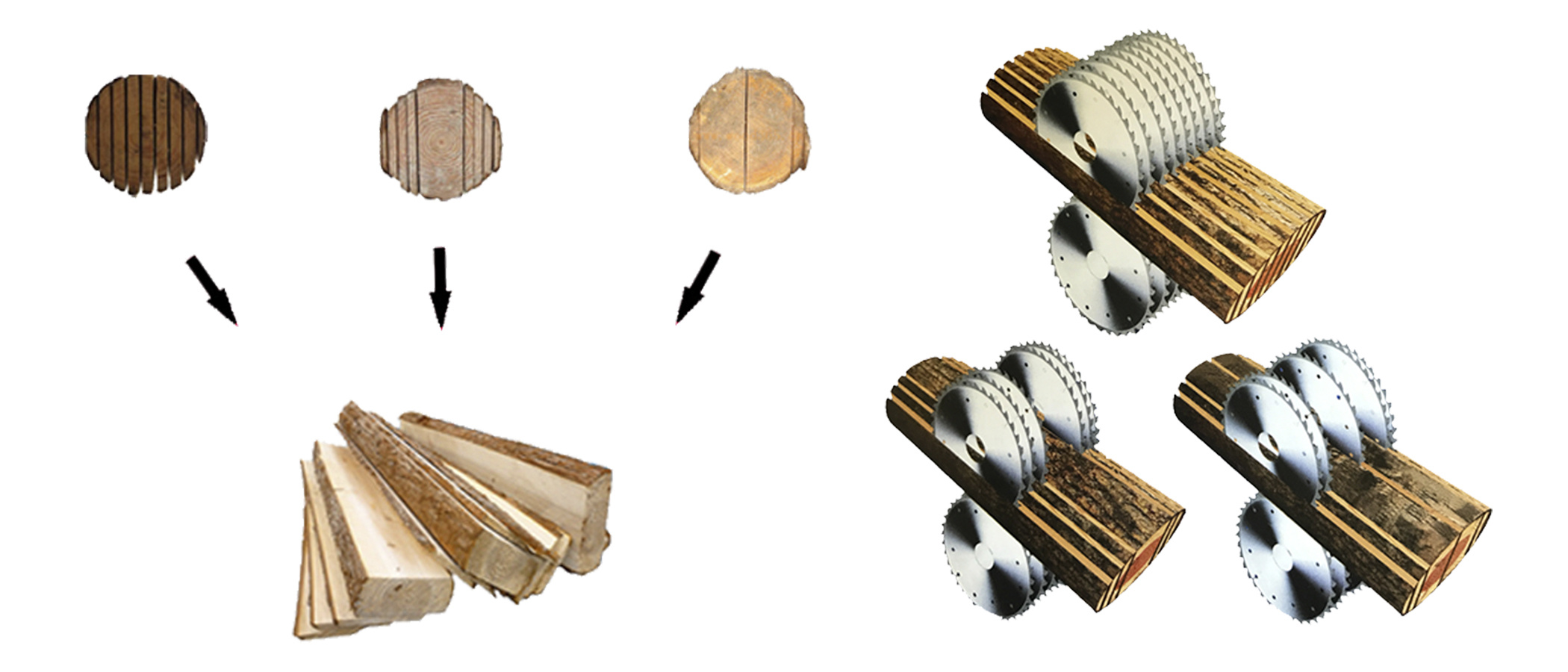

This machine tool has an upper and lower saw axis, so the diameter of the saw blade is small and thin, which can process large-diameter wood and save energy and consumption; the sawing surface is smooth and flat, and can be sawed instead of planed; multiple pieces can be cut at one time to improve work efficiency; automatic centering can improve the quality of the wood Utilization rate; the upper pressure wheel is active to increase the pulling force; the feeding is stable, and short, thick and difficult-to-process wood can be processed; the spindle water cools the saw blade to remove grease and reduce temperature, extending the service life of the saw blade; it is convenient to change the saw blade and change the processing specifications , just replace the spacer without any adjustment.
|
Serial/Model |
MJY142-13 |
|
Total machine power |
31.5KW |
|
Voltage frequency |
3HP-380V,50HZ |
|
Feeding speed |
0-10m/min |
|
Processing length |
≥400mm |
|
Processing diameter |
Ф40-130 |
|
Overall dimensions (length*width*height) |
3010*1200*1520mm |
|
product weight |
1500KG |
|
Saw blade specifications |
Φ230*Φ45 |
|
Spacer specifications |
Φ80*Φ45 |
|
Wood conveying auxiliary frame |
Optional |
