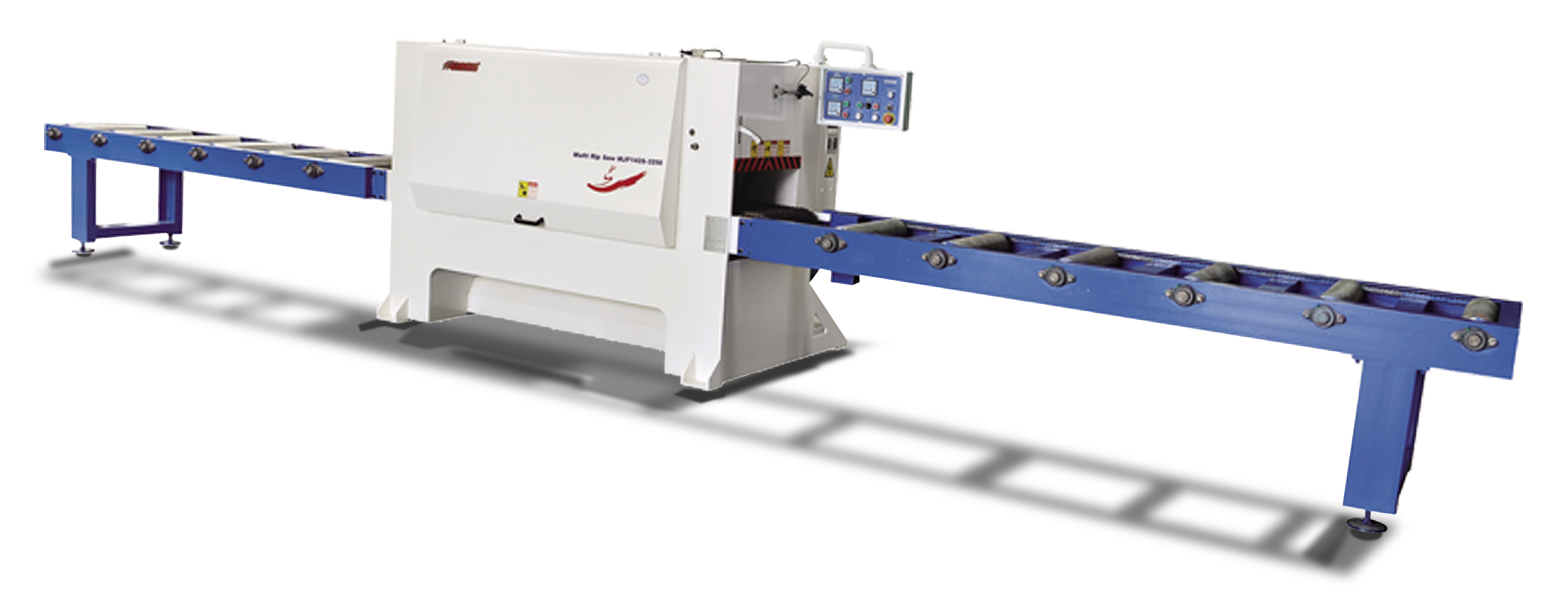

Multi Blade Rip Saw

The MJF142S-2250 machine has double main spindle supports, which is stable and has large driving force, wide processing range, fast speed and increased efficiency. The whole machine design is grand and practical. Electrically adjust the processing height, saving time and effort.

Key words:

sawmill

wood cutting saw

multi blade rip saw

Category:

WhatsApp:

Multi Blade Rip Saw

(1)Operate Safe. Semi-auto feed system, without security risks.
(2)High Capacity. Feeding speed 0-23/min
(3)Easy Operate. Simple operate panel, easy to learn and operate. Sawing thickness can be adjustable to meet different processing demand. Sawing Plate surface smooth enough, no need polishing.
(4)High Precision. Equipped very thin saw blades, High Precision, without problem of two head different diameter, reduce
production process steps and material waste, Increase output coefficient.

Serial/Model	MJF142S-2250
Total machine power	93KW
Voltage frequency	3HP-380V,50HZ
Feeding speed	0-14m/min
Effective processing width	≤500mm
Processing length	≥1500mm
Processing height	40-220mm
Overall dimensions (lengthwidthheight)	316021001670mm
product weight	3600KG
Saw blade specifications	Φ350*Φ70
Spacer specifications	Φ120*Φ70
Wood conveying auxiliary frame	Standard configuration
