Multi Saw Machine
MJF143 series products have perfect performance and have improved a lot of economic benefits for users for the processing of wooden pallets and square lumber in the construction industry.
Key words:
sawmill
multi blade saw machine
Category:
WhatsApp:

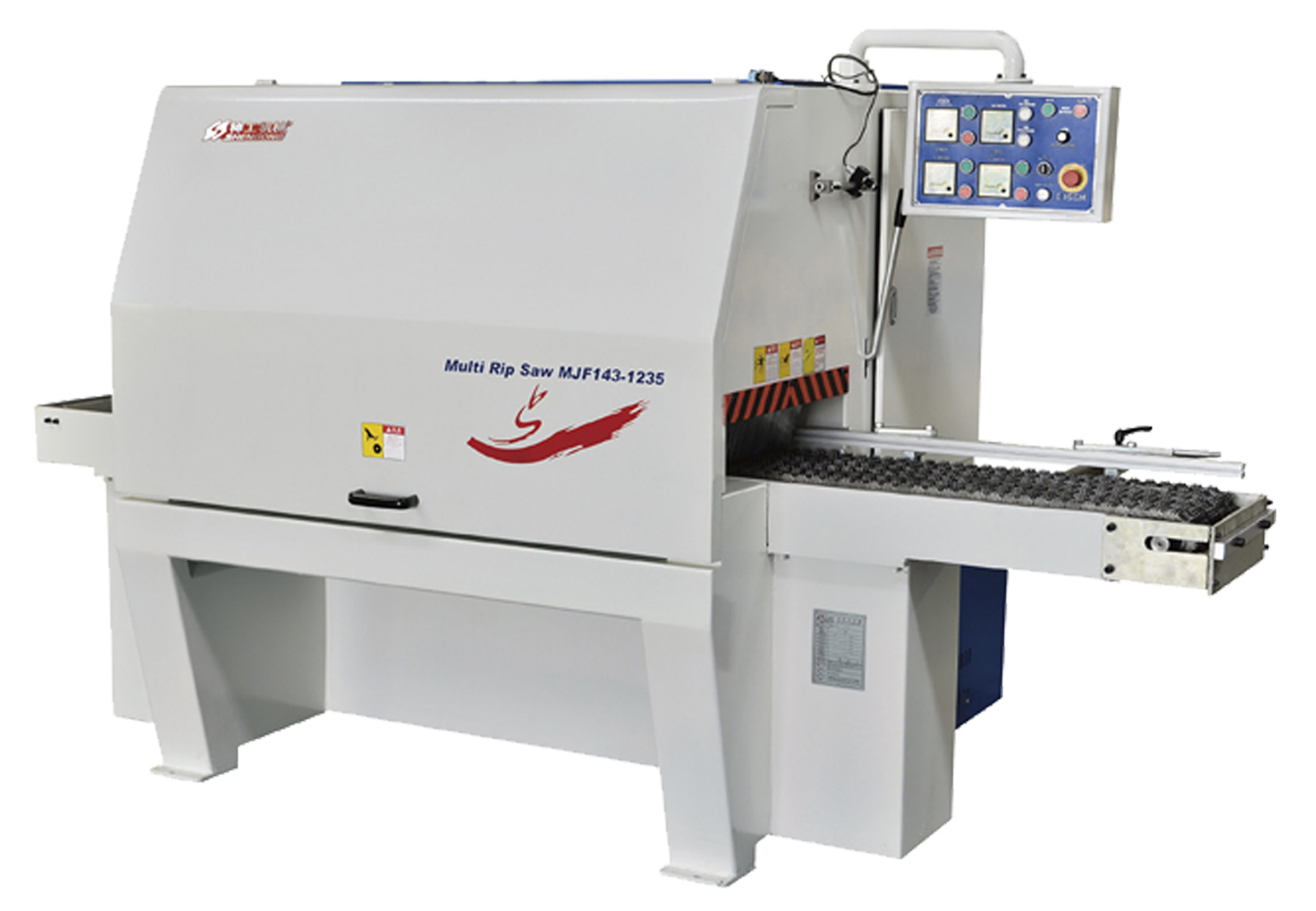

Multi Saw Machine
It has the following advantages: multiple pieces at one time to improve efficiency; variable frequency speed regulation, more user-friendly; stable feeding and large pulling force; accurate edge alignment; smooth sawing surface; water inflow behind the spindle to cool the saw blade, making it easy to install the saw blade, etc.
| Serial/Model | MJF143-1235 |
| Total machine power | 65.07KW |
| Voltage frequency | 3HP-380V,50HZ |
| Processing length of square wood | ≥600mm |
| Feeding speed | 0-12m/min |
| Effective processing width | ≤350mm |
| Maximum passing width | 500mm |
| Processing height | 30-120mm |
| Overall dimensions (length*width*height) | 2800*1450*1620mm |
| product weight | 2100KG |
| Saw blade specifications | Φ170*Φ60 Φ230*Φ60 |
| Spacer specifications | Φ80*Φ60 Φ90*Φ60 |
| Timber auxiliary rack | Optional |
