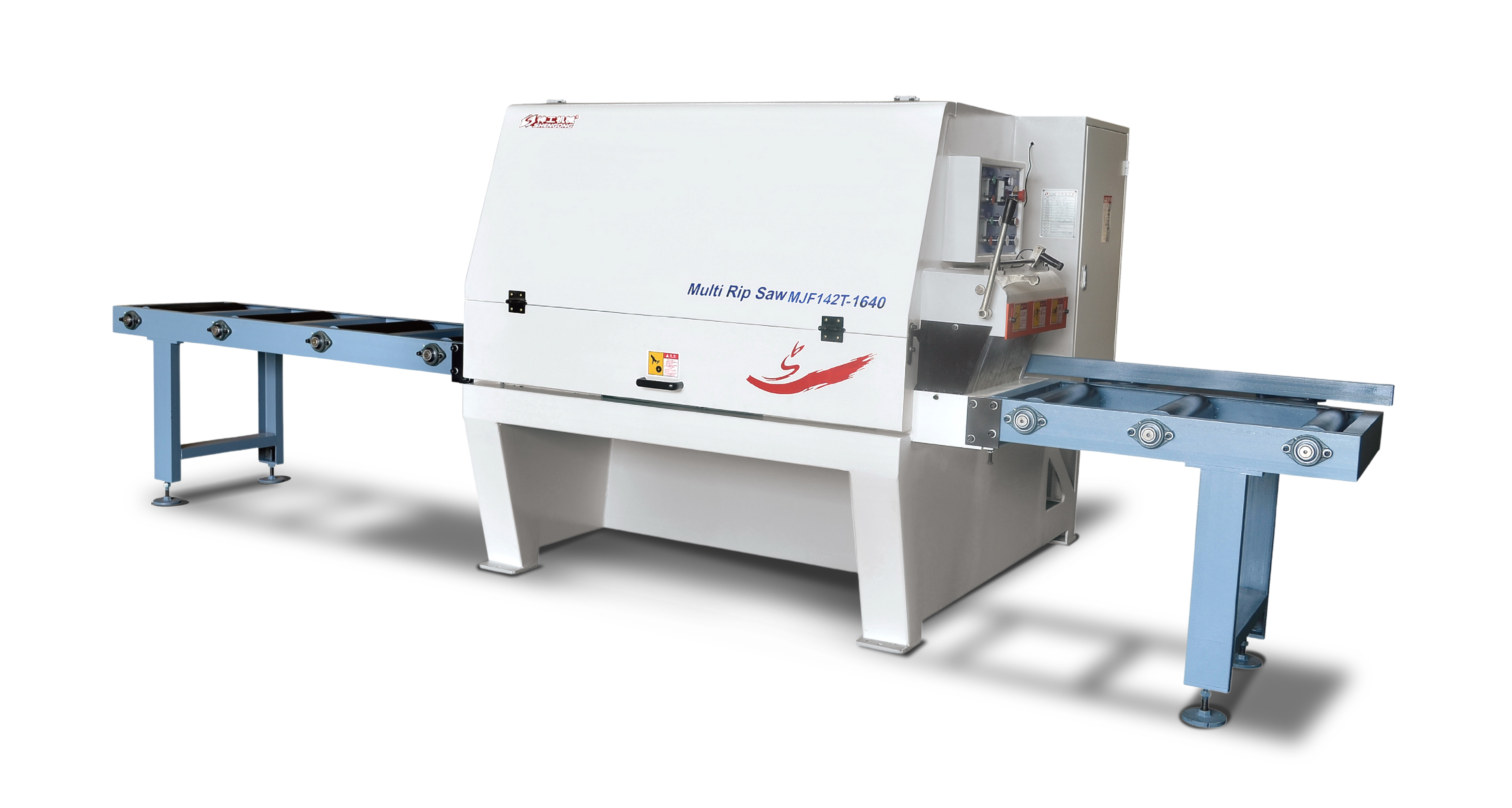

China Multi Rip Saw Machine For Pallet Board Production
Its main features: the upper spindle can be raised and lowered independently. The size of the multi-purpose saw blade in one machine can be adjusted arbitrarily within a certain range to achieve the best processing effect. The saw kerf size is 2.0-2.5mm, which can achieve small saw blades for small wood and large saw blades for large wood. Function. Thereby reducing the loss of saw kerf and saw blade, increasing the material yield, and promoting the improvement of production efficiency.
| Serial/Model | MJF142T-1640 |
| Total machine power | 93KW |
| Voltage frequency | 3HP-380V,50HZ |
| Feeding speed | 0-20m/min |
| Effective processing width | ≤400mm |
| Processing length | ≥850mm |
| Processing height | 30-160mm |
| Spindle lifting and lowering processing range | 100-160mm |
| Overall dimensions (length*width*height) | 2040*2030*1680mm |
| product weight | 3200KG |
| Saw blade specifications | Φ285*Φ80 |
| Spacer specifications | Φ110*Φ80 |
| Wood conveying auxiliary frame | Standard configuration |
