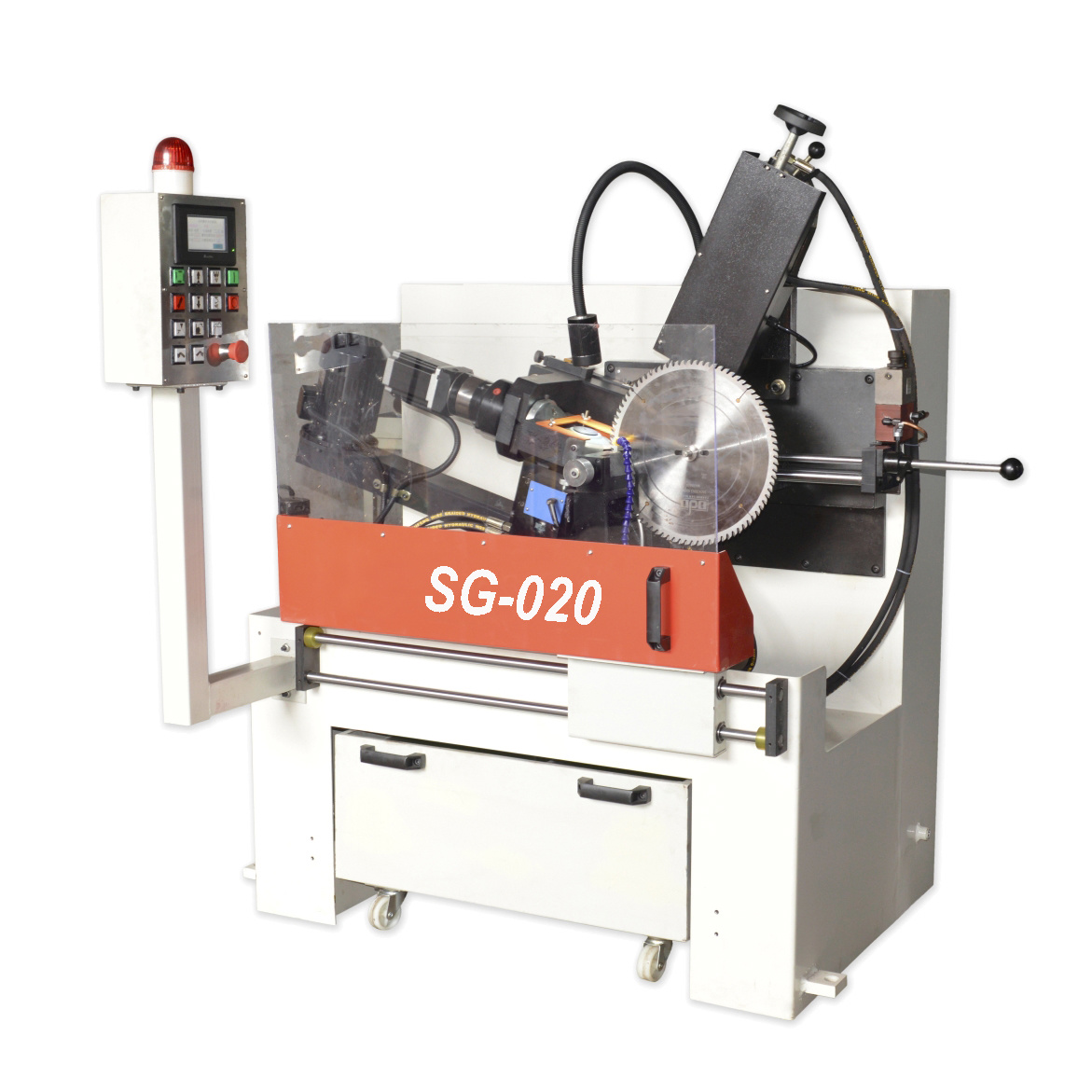

Circular Saw Blade Sharpener
SG-020 Circular Saw Blade Sharpener is specialized for saw blade of multi rip saw that saw blade has left teeth and right teeth.
Key words:
Category:
WhatsApp:
Circular Saw Blade Sharpener
SG-020 Circular Saw Blade Sharpener is for grinding woodworking saw blade of furniture factory, saw blade of multi rip saw machine and alloy saw blade of Aluminum factory.
The sharpening diameter is φ80mm to φ800mm.
Each saw blade can be reused 15 times to 30 times by grinding.
Advantage:
① Precise Grinding
② Adjustable Grinding Speed
③ All Copper Motor
④ High Power
⑤ Silent Work
⑥ Low Loss
| Model | SG-020 |
| Diameter Range of Saw Blade | φ120-800mm |
| Saw Blade Diameter | φ10-220mm |
| Saw Blade Thickness(Steel Plate) | 1-7mm |
| Pitch | 5-100mm |
| Angle of Tooth Surface | 1°-45° |
| Dorsal Horn of Tooth | 2°-45° |
| Left and Right Slope | Tooth Crest/Tooth Surface 1°-45° |
| Sharpening Range | Max. 28mm teeth/min(adjustable) |
| Grinding Speed | 0.5-6mm/s |
| Working Speed | Max. 20 Teeth/min |
| Grinding Wheel Size | φ125mm*φ32mm |
| Negative Chamfering | -20° |
| Rotary Angle of Grinding Head | 90° and 180° |
| Grinding Wheel Speed | 5600r/min |
| Flow Rate of Water Pump in Coolant | 50L/min |
| Coolant Cylinder Volume | 85L |
| Total Power | 3KW |
| Voltage | 3HP-380V, 50HZ |
| Mechanical Weight | 700KG |
| Mechanical Size | 1200*1100*1800mm |
