Pallet Nailing Line

Shengong pallet nailing line only need two workers and each shift can get 400pcs to 500pcs pallet.

Key words:

SHENGONG

Category:

WhatsApp:

Pallet Nailing Line

Use me, you will succeed!

Automatic wood pallet nailing machine is mainly used in the production of American and European pallets. Our pallet nailing machine is equipped with a pallet turnover device and palletizing device, high degree of automation. The whole machine adopts automatic program control, the operating system adopts imported PLC. Our company has made a lot of improvements to the wooden pallet nailing machine, and the price of the wooden pallet nailing machine is relatively low. The machine runs stably and can run continuously and efficiently.

We also provide custom sizes, if you need, please contact us

Model	SG-1300A
Working Range	800-1300mm adjustable
Equipment capacity	60-90/h
Total power	4.5kw
Motor power	1.5KW servo motor
Stringer qty	3-4 pieces

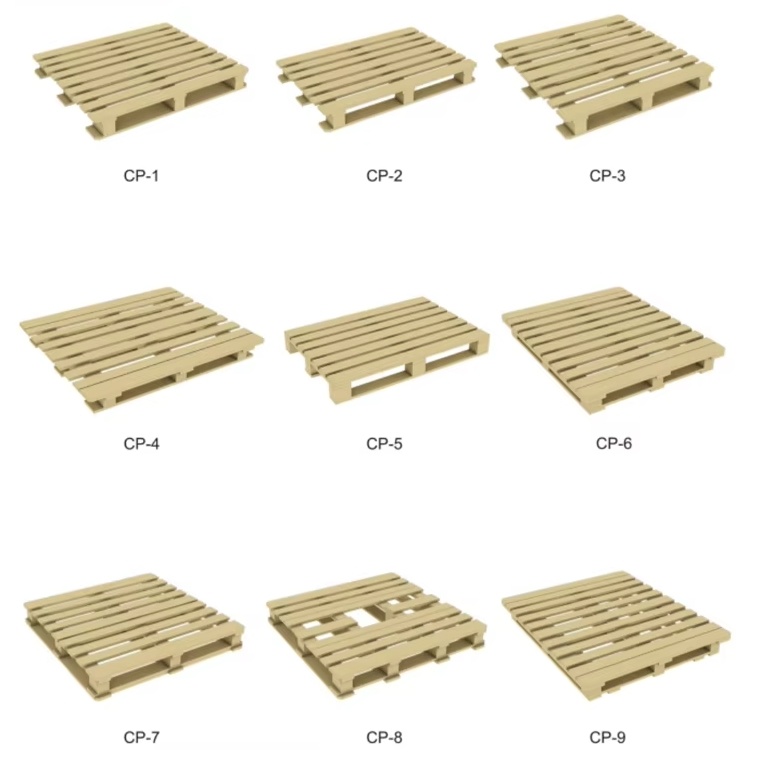

Can be used as pallets	European standard pallets, whole board pallets
Nail gun	American Stanley 80 nail gun * 3 ，58 nail gun * 3
Air pressure	0.8MPA
Nail gun speed	7S each time
Material collection	Automatic palletizing (hydraulic, pneumatic)
Wiring mode	380V voltage
Operation mode	Touch screen operation
Production mode	Manual material discharge/automatic nailing/automatic palletizing
Equipment size	Nailer: 250022002400mm Palletizer: 260021001800mm
Optional	Corner cutting、Branding、Stacker

Product advantages

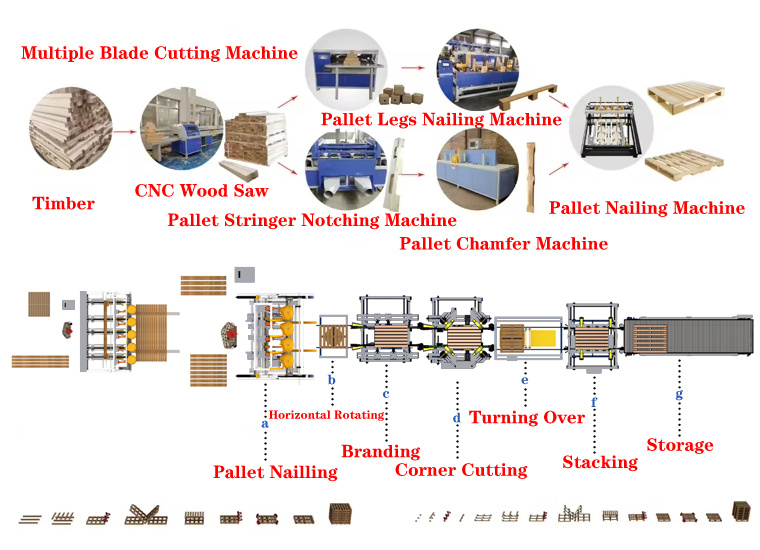

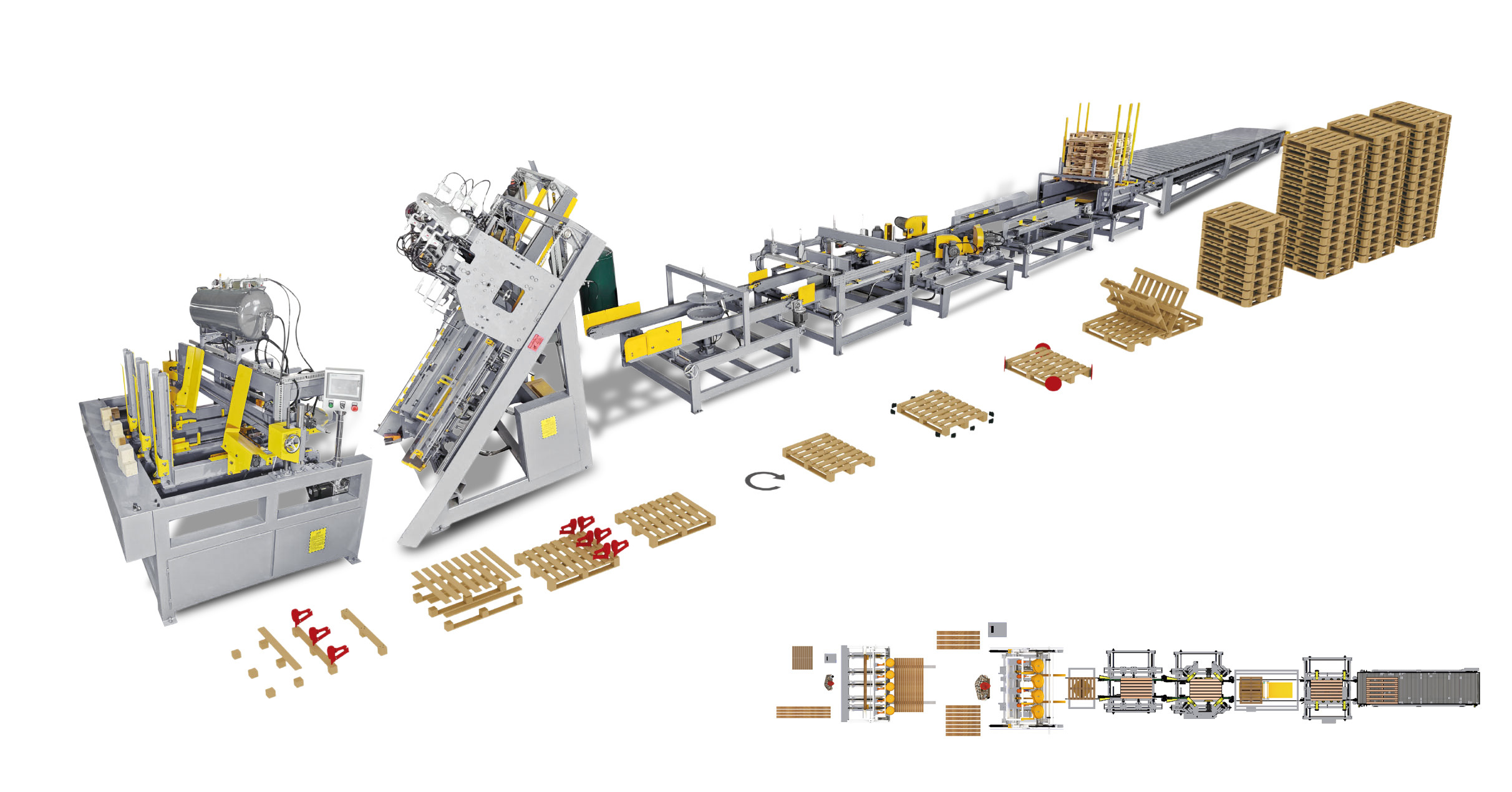

European wooden pallet production line equipment is mainly used to produce European pallets. The production process includes plate pier cutting, pier nailing, and pallet nailing. The production line has flexible size adjustment, low investment, high efficiency,simple structure, easy maintenance, and saves labor. Etc.
