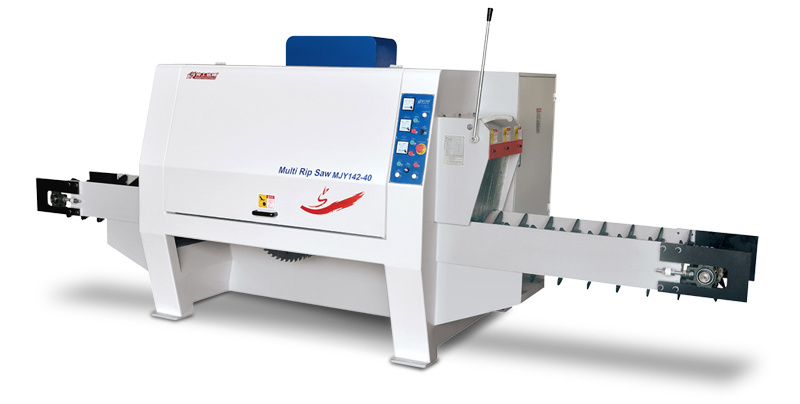

Multi Blade Saw For Cutting Round Log

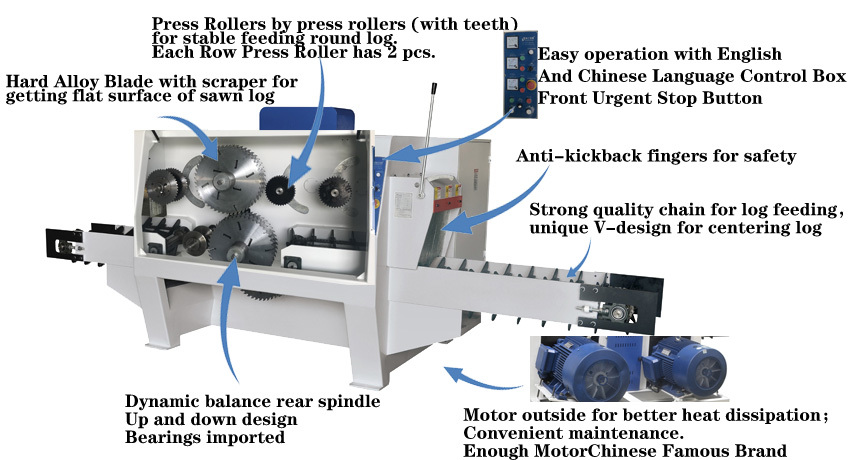

Its main features and performance are:
This machine tool has an upper and lower saw axis, so the diameter of the saw blade is small and thin, which can process large-diameter wood and save energy and consumption; the sawing surface is smooth and flat, and can be sawed instead of planed; multiple pieces can be cut at one time to improve work efficiency; automatic centering can improve the quality of the wood Utilization rate; the upper pressure wheel is active to increase the pulling force; the feeding is stable, and short, thick and difficult-to-process wood can be processed; the spindle water cools the saw blade to remove grease and reduce temperature, extending the service life of the saw blade; it is convenient to change the saw blade and change the processing specifications , just replace the spacer without any adjustment.
| Serial/Model | MJY142-40 |
| Total machine power | 134KW |
| Voltage frequency | 3HP-380V,50HZ |
| Feeding speed | 0-10m/min |
| Processing length | ≥1400mm |
| Processing diameter | Φ200-400mm |
| Overall dimensions (length*width*height) | 4780*2400*1660mm |
| product weight | 4000KG |
| Saw blade specifications | Φ560*Φ80 |
| Spacer specifications | Φ140*Φ80 |
| Wood conveying auxiliary frame | Optional |
