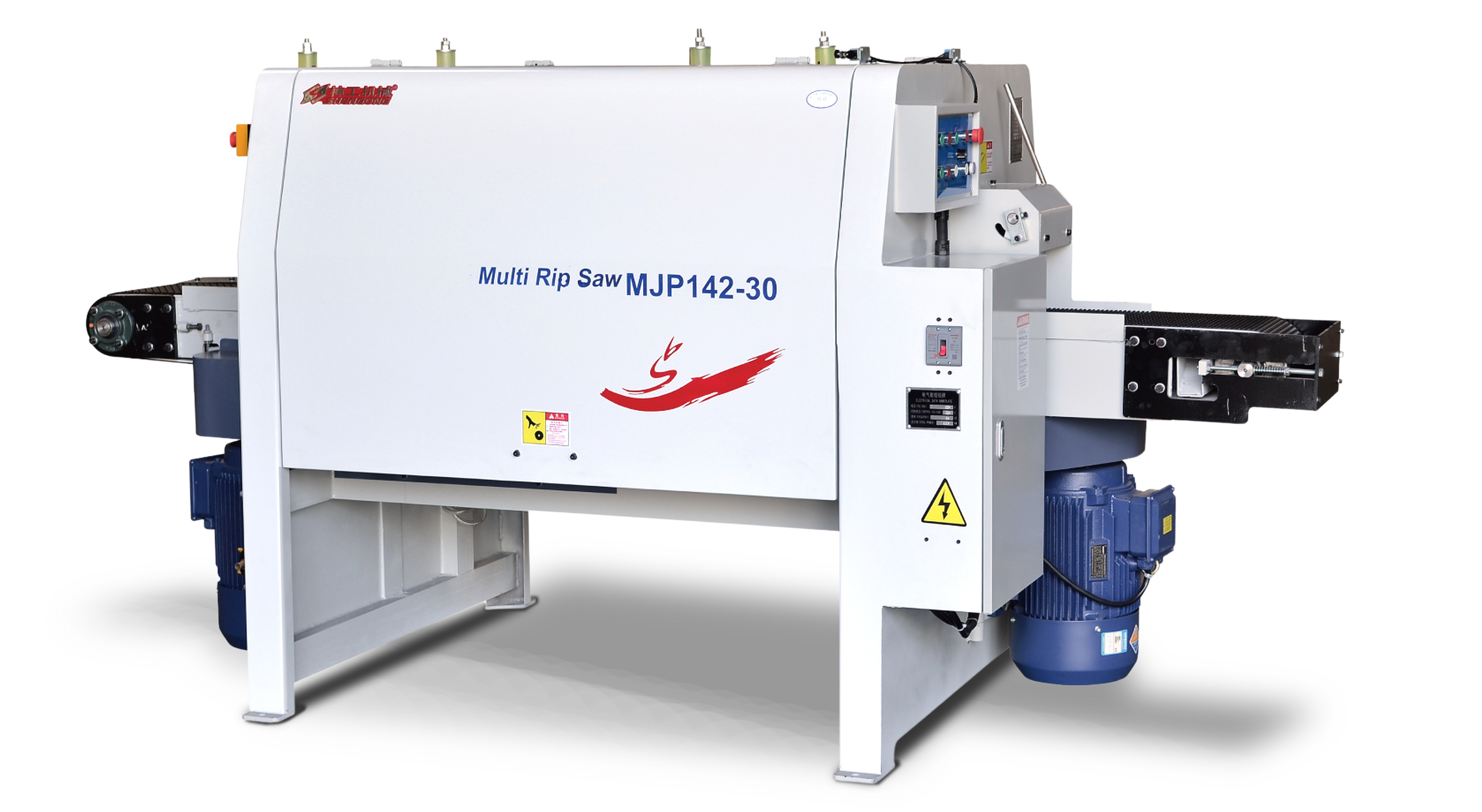

Rip Saw For Cutting Sapwood
Rip Saw For Cutting Sapwood Or Wood Bark
Shengong MJP 142 series is specialized rip saw machine for horizontal sawing the remaining wood bark or sapwood from log processing.
After cutting sapwood, you will get edge board and then using our edging saw to get specification board.
| Model | MJP142-30 | MJP142-20 | MJP142-15 | MJP142-09 |
| Machine Total Power | 40KW | 33KW | 33KW | 32.2KW |
| Voltage/Frequency | 3HP-380V, 50HZ | 3HP-380V, 50HZ | 3HP-380V, 50HZ | 3HP-380V, 50HZ |
| Processing Length | ≥850mm | ≥750mm | ≥750mm | ≥600mm |
| Feeding Speed | 0-32 m/min | 0-32 m/min | 0-32 m/min | 0-32 m/min |
| Processing Width | ≤300mm | ≤200mm | ≤150mm | ≤900mm |
| Processing Height | 10-130mm | 10-130mm | 10-130mm | 10-130mm |
| Appearance Size | 3200*1460*1620mm | 3200*1290*1620mm | 3200*1240*1620mm | 2810*1180*1620mm |
| Product Weight | 1400KG | 1200KG | 1200KG | 1200KG |
| Blade Size | φ450*φ50 | φ355*φ50 | φ305*φ50 | φ230*φ50 |
| Spacer Size | φ120*φ50 | φ120*φ50 | φ120*φ50 | φ120*φ50 |
