Multi Blade Saw Machine
Key words:
multi rip saw
sawing machines
multi rip saw machine
Category:
WhatsApp:

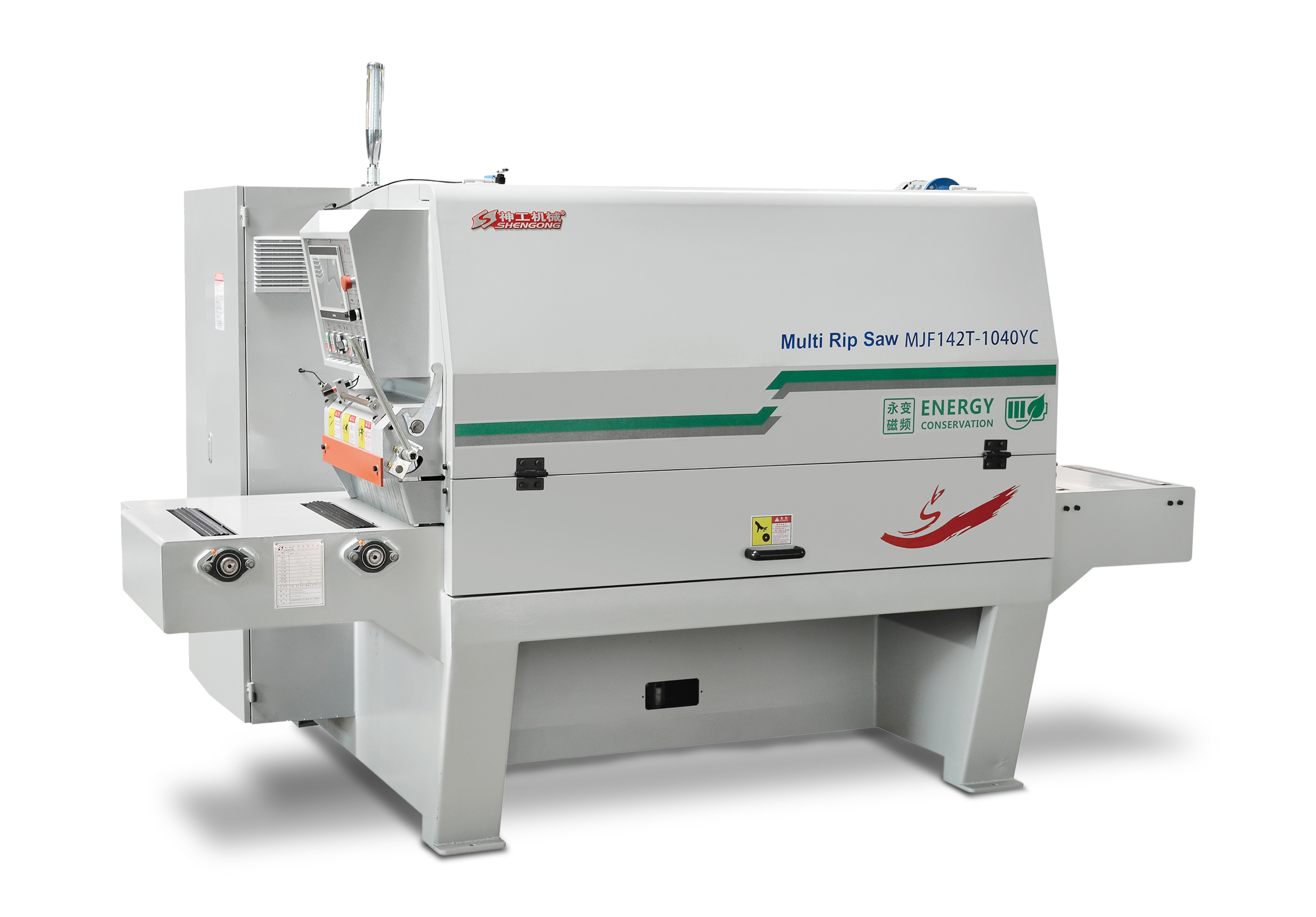

Multi Blade Saw Machine
Main feature：
1. The spindle adopts self-developed new patented technology to reduce the loss of motor energy and make it more energy-saving. The idle current is only 3 amps, and the power consumption rate of the whole machine is the lowest. It can save 20% compared to the same type of permanent magnet machines in the industry, and is 20% cheaper than traditional asynchronous motors. Save 38% on multi-blade saws.
2. The pressure wheel roller is equipped with an automatic oiling system to make the bearing more durable.
3. This machine adopts two independent operation modes of intelligent touch screen and traditional buttons, allowing the operator to retain the original fool-like button startup habit while the screen serves as an assistant to make it more intuitive.
4. Screen failure does not affect the use of traditional buttons, and the device can still operate normally.
5. Using an intelligent monitoring system, the screen will automatically remind you of the cause of the failure when it occurs, making it more user-friendly.
6. The system can be upgraded in the intelligent remote cloud, and the company provides professional cloud service after-sales guarantee, and can wirelessly diagnose the cause of the fault remotely.
Therefore, troubleshooting is quick and effective.
7. The electric lifting of the spindle can be set directly on the screen, which is efficient and precise.
8. The feeding speed will automatically change according to the load condition to ensure the safe use of the saw blade.
| Serial/Model | MJF142T-1040YC |
| Total machine power | 55.5kW |
| Voltage frequency | 3HP-380V,50HZ |
| Processing length | ≥950mm |
| Feeding speed | 0-25m/min |
| Processing width | ≤400mm |
| Processing height | 25-100mm |
| Overall dimensions (length*width*height) | 3050*1700*1670mm |
| product weight | 2500KG |
| Saw blade specifications | Φ230*Φ70 |
| Spacer specifications | Φ108*Φ70 |
| Timber auxiliary rack | Optional |
