Hydraulic Wood Pallet Nailing Machine

Automatic wooden pallet production line is used for assembling solid wooden pallets

✦Can make block pallets, EPAL pallets, and other wooden pallets, American stringer pallets etc. The entire production line is modularly connected, can control each station start and stop through program.

✦Notes, The machine use mold to positioning the pallet, one pallet one mold, machine offer with one set of mold, time to change mold & adjust machine need 3-8 hours, so don’t recommend change pallet often, means only recommend big quantity pallet use this machine. Please send us your pallet drawings for our evaluation.

Model	Stringer pallet nailing machine
Finish size	800-1300mm
Work efficiency	4-7 per minute
Total power	20-30Kw

Production mode: manual feeding, automatic nailing, and automatic stacking

Operation mode: Touch screen operation

Pressing mode: pneumatic pressing

Material receiving mode: automatic stacking (hydraulic, pneumatic)

Nail gun mode: program controlled automatic nailing

Tray model: American standard tray, European standard tray, can be customized with irregular shaped trays

Performance characteristics: safe and stable, diverse functions, high productivity, simple operation, and can be operated by one person

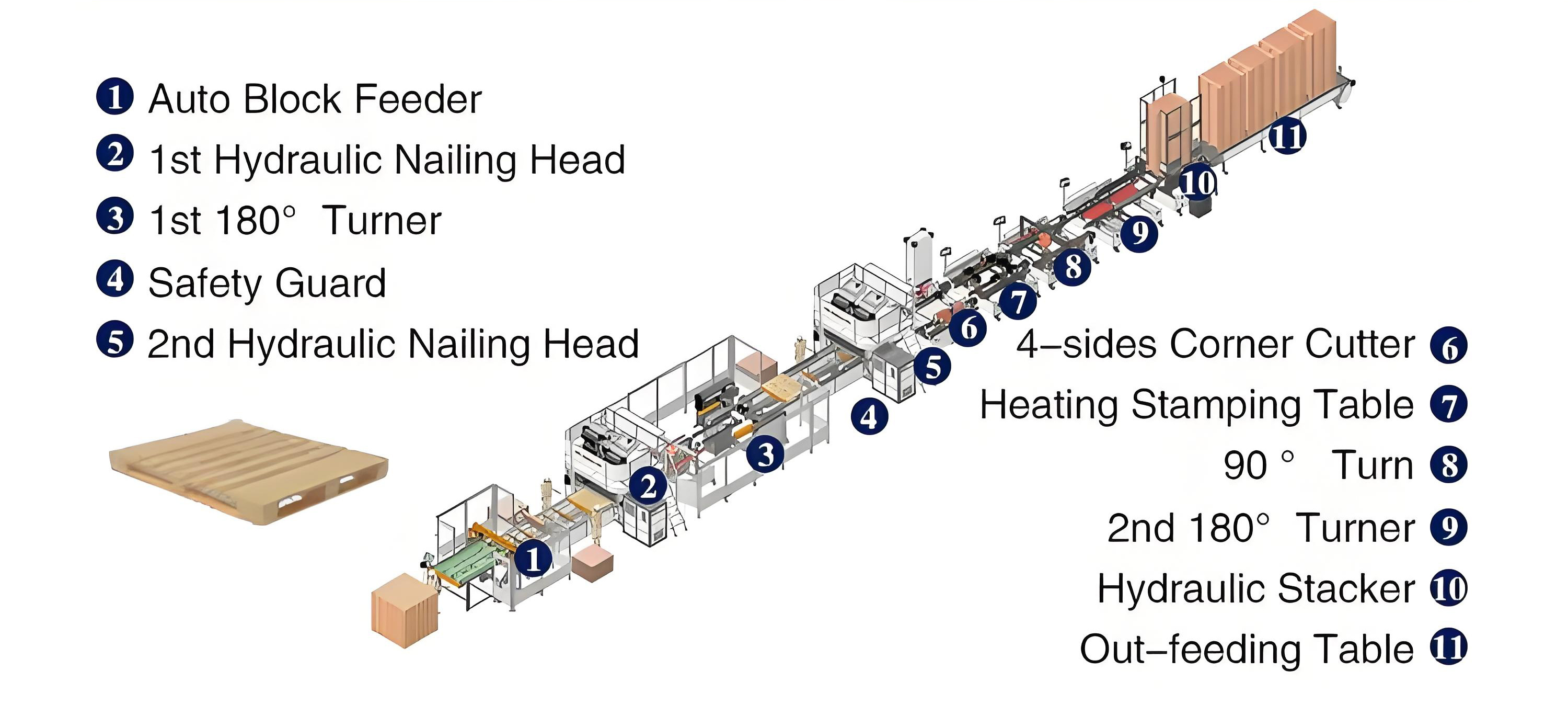

The automatic full line contains, Automatic block feeder + hydraulic nailing head 1+ Whole turning table +hydraulic nailing head 2 + 4-side corner cutter table+ HT stamping table + normal turning table + stacking table + Out-feeding table

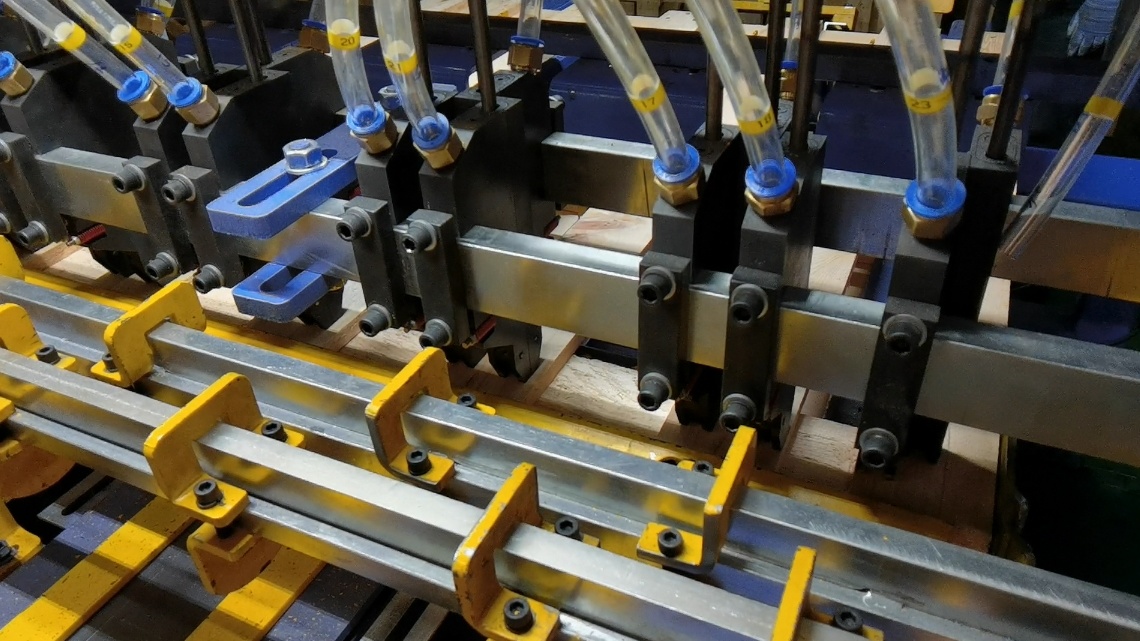

Nail gun

✦The nail gun driven nails into wood by hydraulic, and each row can hold up to 36 nail guns to work at the same time. The firing pin of the nail gun uses thickening and heat treatment technology, which is not easy to be damaged, has a long life, and is durable. Each pallet only needs nail 3 times to complete, which can easily realize the nail returning process.
