Heavy Duty (Large Scale) Horizontal Band Saw
Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product developed by the company with 30 years of production experience. It solves the difficulty of sawing large-diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola, Fiji and Southeast Asian countries.
| Model： | SG1200 |

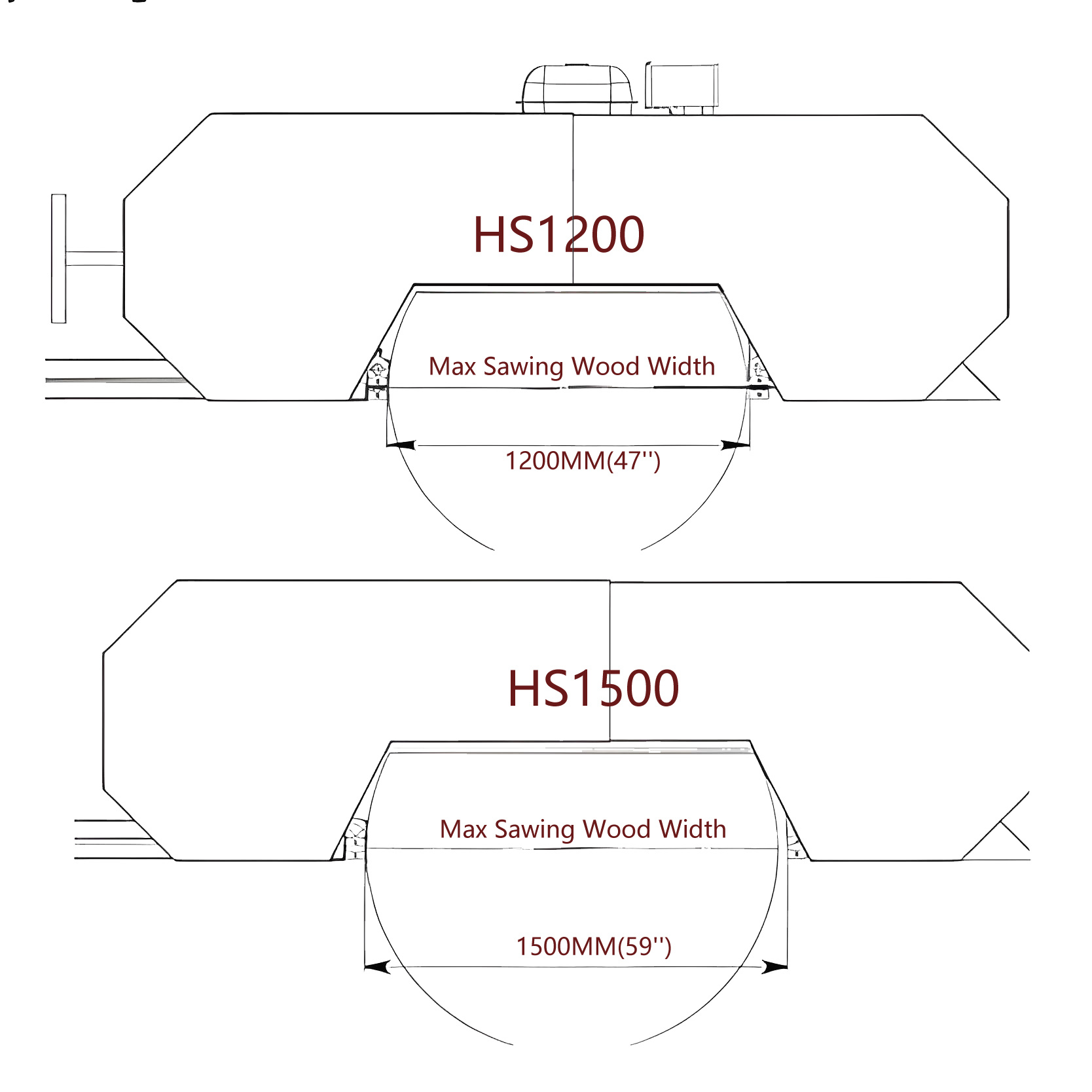

| Max Sawing Wood Width： | 1200MM(47'') |
| Distance Between Saw Blade And Saw Bed： | 1100MM |
| Saw wheel diameter： | 1000MM |
| Max Sawing thickness： | 350MM |
| Sawing wood Length： | 6Meters |
| Saw Blade Length： | 7700MM |
| Saw Wheel Motor Power： | 30KW |
| Other Motor： | 3KW*1For forward/backward,1.5KW*1For Blade Tension,2.2KW*1For Up/down Sizing |
| Weight： | 3800KG |
| Option 1: RMB36000 For 80HP Four Cylinder Diesel Engine | |
| Option RMB3600 Per Meter For Free foundation track bed | |
