Crosscut Saw For Timber Board

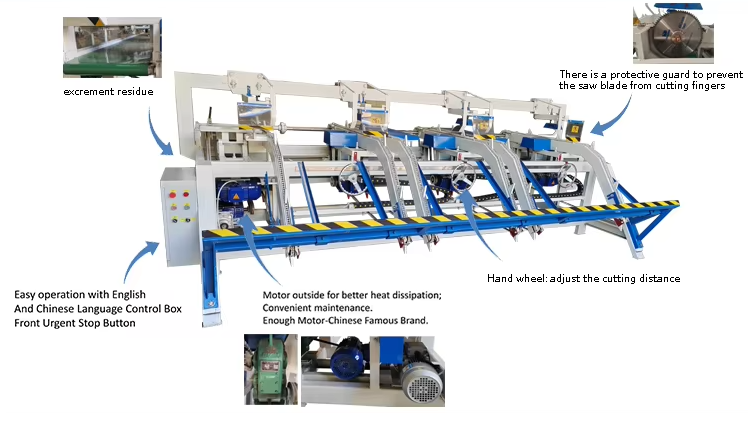

Shengong MJ145-10 Crosscut Saw is for shortening board.
Customer can choose multi heads cutting according to length cutting.
2 cuttings, 3 cuttings, 4 cuttings, 5 cuttings and 6 cuttings.
Board length min. 650mm, max. 6000mm
Thickness max. 100mm
| Serial NO. Model | MJ145-10 |
| Main motor power: | 4kw*5 pcs |
| Feeding Motor Power: | 3kw*1 pcs |
| Voltage/Frequency: | 3HP-380V,50HZ |
| Feeding Speed： | 1-15m/min(frequency control) |
| Processing Length: | 850-6000mm |
| Processing Thickness: | 95mm |
| Processing Width： | 200mm |
| Machine Size： | 6500*2350*1200(for reference) |
| GW： | 3000KG |
| For Cutting 6 meters timber length, one saw fixed, the other 4 saws moving. | |
